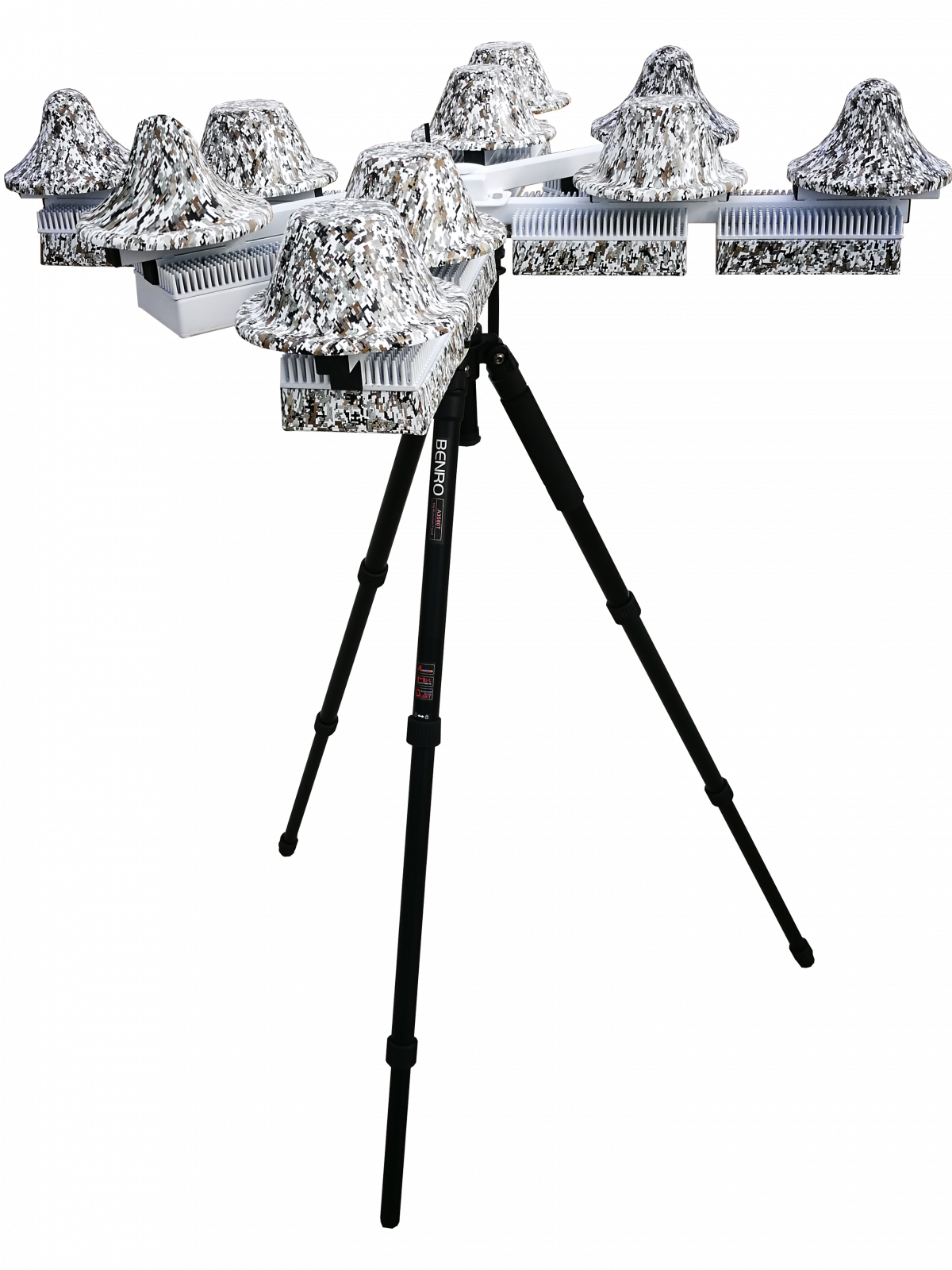

Kupol-PRO portable anti-drone system

Kupol-PRO portable anti-drone system

Portable/stationary omnidirectional (360°*180°) anti-drone system. The system is designed to suppress the UAV navigation, control and data link channels to interfere with drone functioning in the site airspace.

Produced by JSC Concern Avtomatika

  • It is complete with isotropic radiation omnidirectional (360°*180°) anti-drone antenna feeders (making a drone-proof ‘dome’).
  • Countermeasures range: least 2.5 km.
  • Weight: 13 kg, the closest competitor’s equivalent weighs over 100 kg.
  • Deployment time: 4-5 minutes.

Tactical and technical advantages

Simultaneous impact on frequency channels of communication, control and navigation support of unmanned aerial vehicles

Energy potential

80 W

The Kupol-PRO UAV combating complex includes

  • Antenna-feeder system: 1 set
  • Noise generator blocks: 1 set
  • Supporting tripod
Outdoor equipment of the complex ensures operation
  • In the temperature range from -40 °C to + 50 °C
  • When exposed to atmospheric precipitation (rain) with an intensity of 5 mm/ min;
  • When exposed to sand and dust
