«Sapsan-Bekas» mobile multifunctional UAV countering complex

Order
«Sapsan-Bekas» mobile multifunctional UAV countering complex
Order

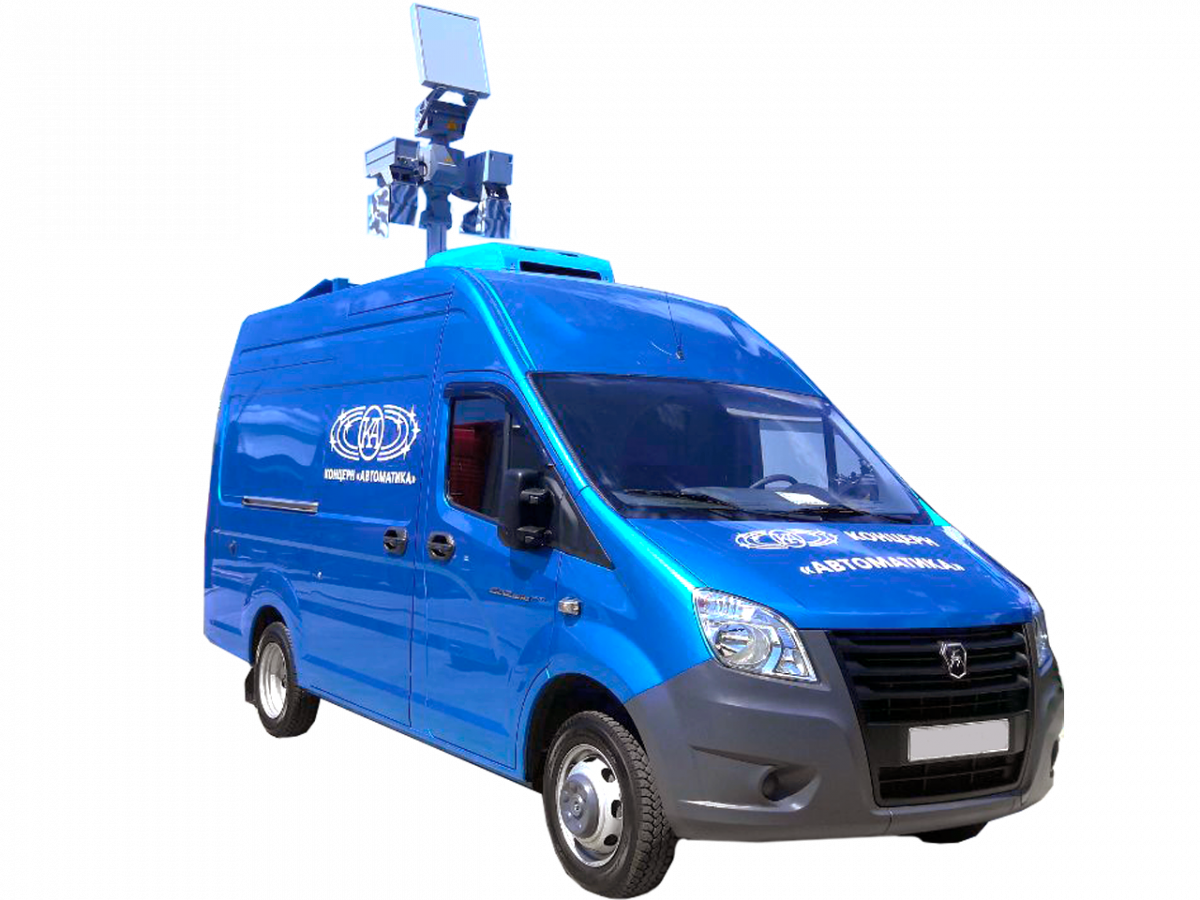

The complex protects facilities objects and territories from actions performed using unmanned aerial vehicles.

Composition:

  • Subsystem of UAV radio detection and direction finding
  • Subsystem of active radar and optoelectronic tracking
  • Radio suppression subsystem

Produced by JSC Concern Avtomatika.

The mobile multifunctional complex makes it possible to perform the detection and counteraction of UAV in near-real time.

All means of target detection and impact are combined in a modern automated workplace for information management and display.

The whole complex is controlled by 1 operator.

Technical characteristics of the radio detection subsystem

Working frequency range

Provides for timely detection in the range of UAV control communication

Sensitivity, dBm / Hz

140

Dynamic range, dB

110

Maximum frequency resolution, Hz

8

Maximum scanning speed, MHz / s

11000


Technical characteristics of the radar detection subsystem

Space sector:

  • By azimuth
  • In elevation


360 0
70 0

D resolution D, m

15

V resolution, m/s

0,165

Target height range, km

upto 4

Scanning speed, deg/sec

0…20

Before detection of a small air target, not less than, m:

  • Up to 0.02 м² radar cross section
  • Over 0.2 м² radar cross section



≥ 3600
≥7100


Technical characteristics of the optoelectronic surveillance subsystem

Video camera of visible spectrum

Recognition of air targets, at least, m:

  • «Fantom» type UAV
  • «Orlan» and «Merlin» types UAVs


2 200
5 500

Fields of view (optical zoom)

35,5⁰ ~ 1,8⁰

Zoom lens, mm

20-420

Cooled thermal imager

Range of recognition of mobile and stationary aerial objects in the dark, no less than, km:

  • «Fantom» type UAV
  • «Orlan» and «Merlin» types UAVs




4
7

Fields of view (optical zoom)

35,5⁰ ~ 1,8⁰

Digital zoom


Technical characteristics of radio electronic suppression subsystem

Tactical and technical advantages

Simultaneous impact on the frequency channels of communication, control and navigation support of unmanned aerial vehicles

Number of working channels

14

Energy potential of the emitted signal, no more than, W

100

Suppression range, not less than, km

4

Duration of work in standby mode (without emission), hr

24

Accuracy of azimuth setting, deg

3

Operating voltage, V/Hz

220/50
