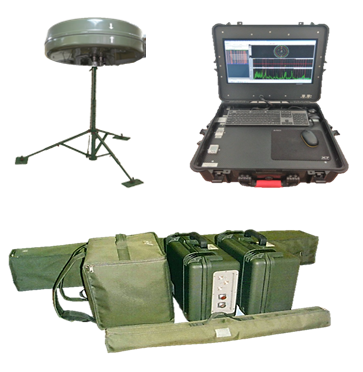

Station for drone radio engineering detection and direction finding
Order

The system is designed for manual and automatic direction finding and monitoring of drones and drone ground controls.

Produced by JSC Concern Avtomatika

  • Amplitude and correlation-phase direction finding.
  • Manned, unmanned and autonomous modes.
  • Technical analysis of signal parameters.
  • Detection and direction finding of drone electronics.
  • Data processing, report generation and printout.
  • Transfer of processing results to control workstations, storage of information in a database.

Operating frequency range of surveillance and technical analysis

300 to 6000 MHz

Sensitivity from the product input in the 15 kHz band

max. 0.6 µV

Field sensitivity in the 15 kHz band

max. 20 dBµV/m

Surveillance frequency range rate

1.5 GHz to 30 GHz (depending on the surveillance mode)

Maximum analysis band

25 MHz

Detection and DF distance

at least 20 km
